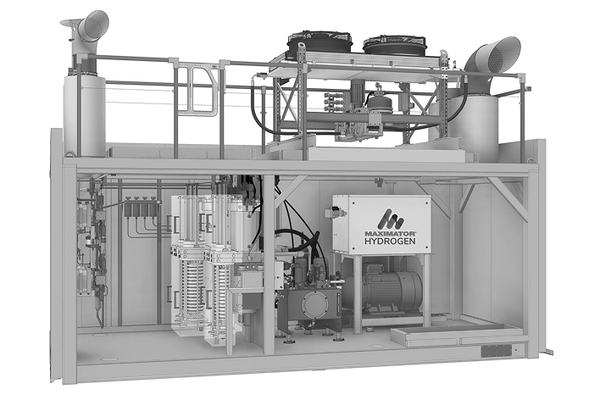

Maximator 1.5 Hydrogen Compressor (with auto seal changer)
Delivers high-pressure compression to enable fast fills and deeper storage drawdown with simpler maintenance.

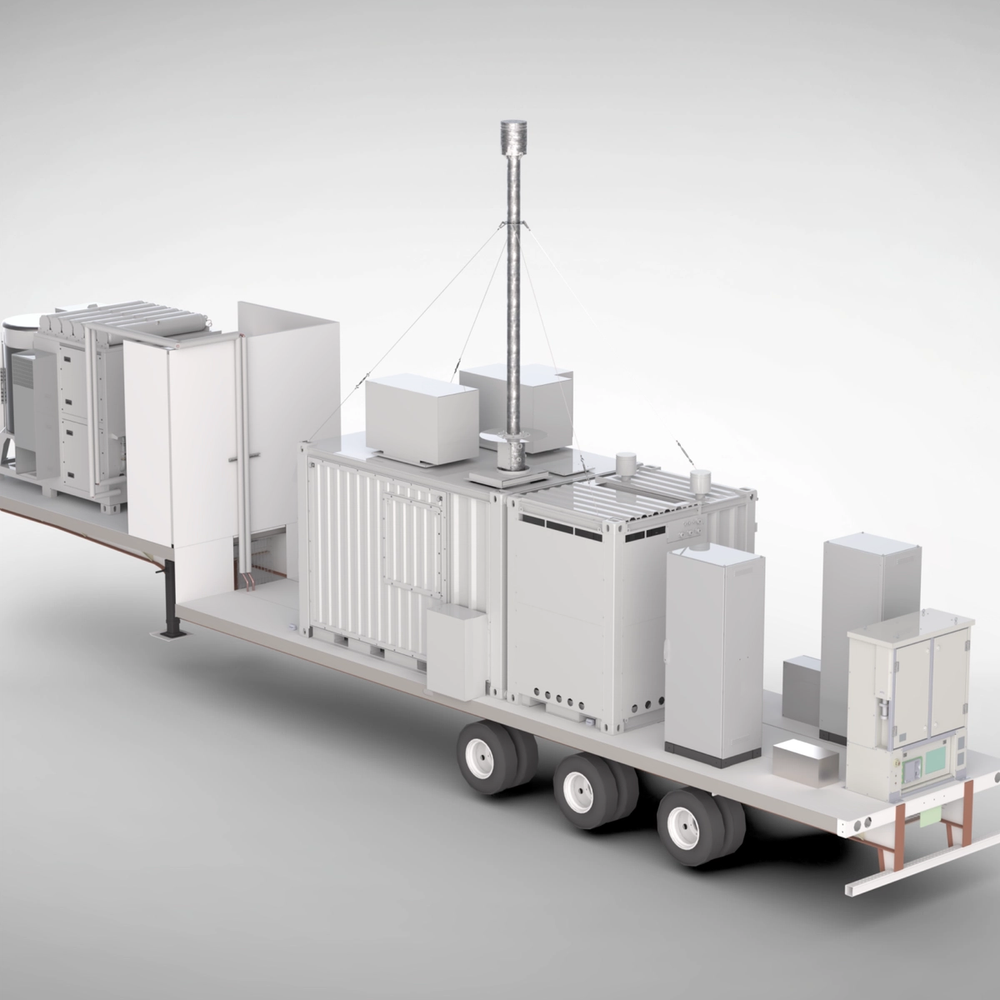

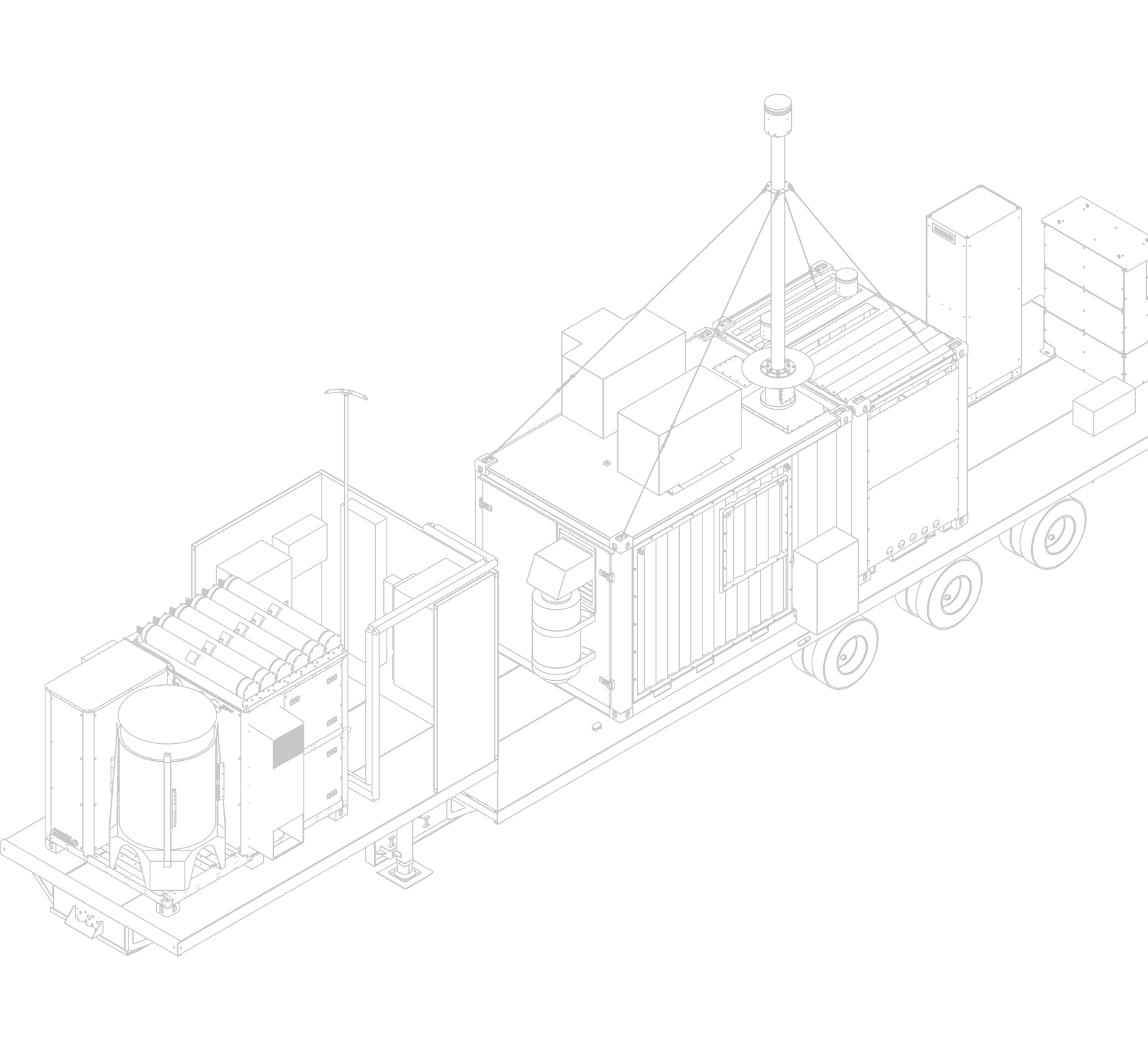

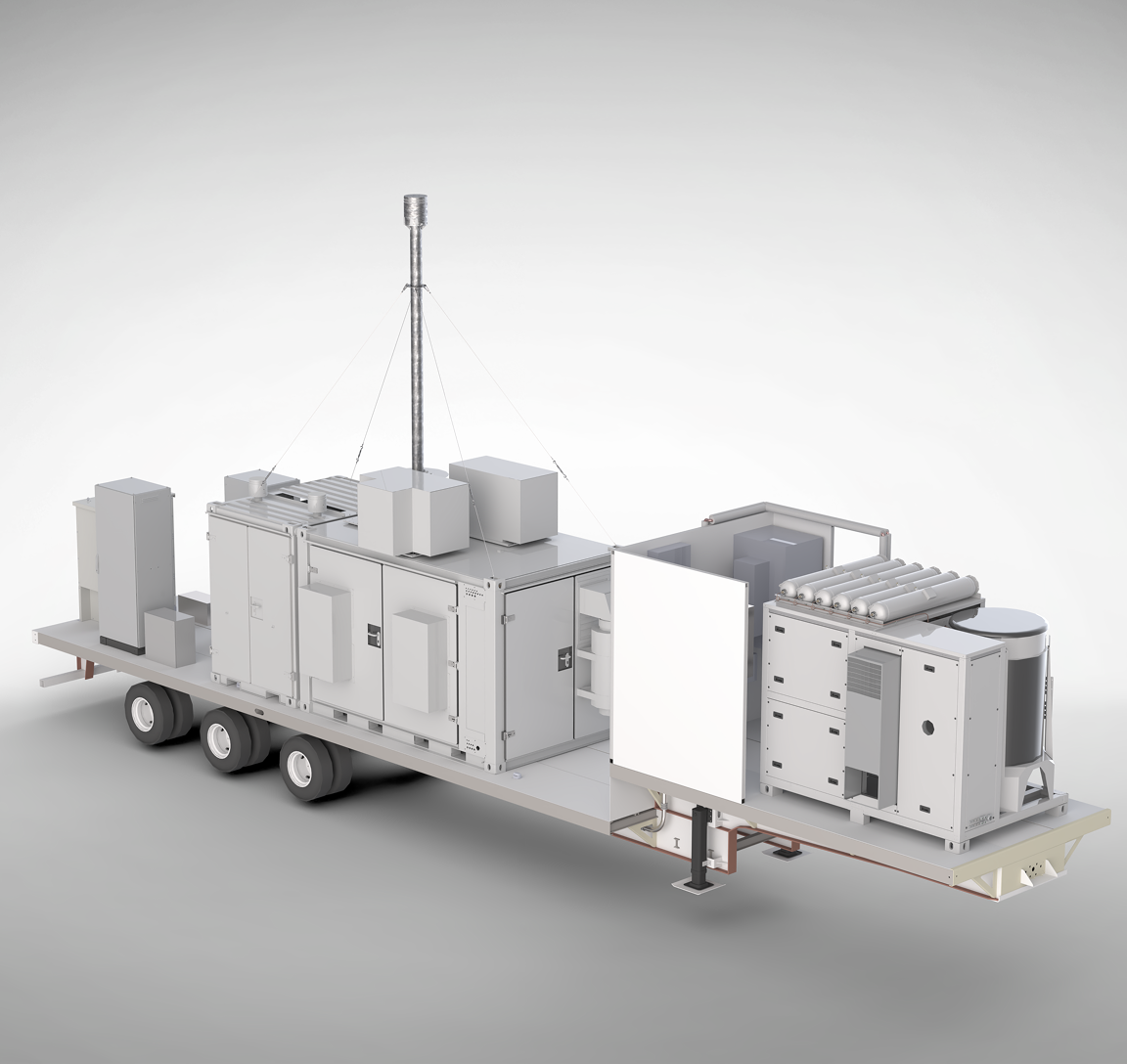

FASTMAX: Mobile GH2 Fueling System
FASTMAX is a mobile hydrogen fueling system engineered by FASTECH using trusted Maximator technology to bring hydrogen fueling anywhere it’s needed.
From light-duty passenger vehicles to heavy-duty Class 8 trucks, FASTMAX is quick to deploy, affordable to install, and ideal for areas without traditional infrastructure. Its advanced compressor technology minimizes waste and maximizes fueling efficiency.
Speedy Deployment and Use
FASTMAX deploys quickly and affordably, making it easy to begin fueling for retail fleet or transit operations. The system typically deploys within six months of placing the purchase order.
Mobility
FASTMAX is ideal for operations with limited infrastructure access or construction windows, delivering all the equipment needed to start dispensing and, once it’s constructed, can be deployed and put into service easily. The system is a quicker, more cost-effective alternative to traditional site development.
Maximized Hydrogen Utilization
The fully integrated compressor, chiller, and dispenser support high-flow fills and deeper storage drawdown, maximizing delivery efficiency.
Key Components of the FASTMAX System
FASTMAX integrates reliable hardware into a compact, road-ready design, with each component chosen by FASTECH engineers for its safety, performance, and ease of maintenance.

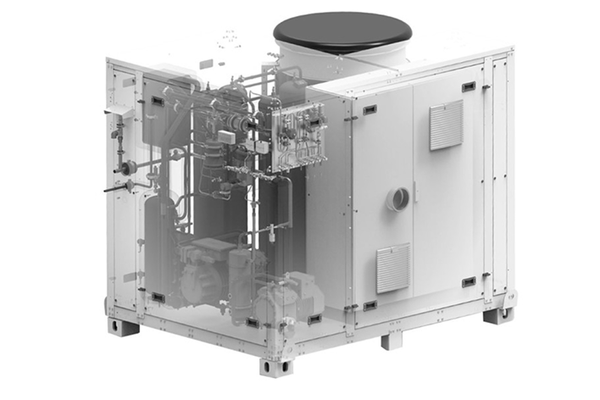

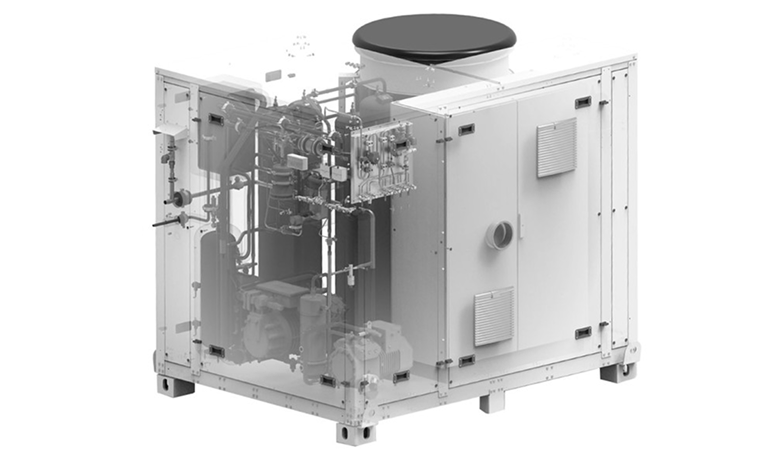

Kustec “Raccoon 45” Pre-Cooler/Chiller
Pre-cools hydrogen to support consistent, high-flow dispensing and complete fills.
FastMax Performance Details and Requirements
FASTMAX is built for dependable and scalable fueling. Key specs and site needs are below:
Performance:
- Max fill rate: 6 kg/min from HP storage
- Throughput: ~36 kg/hr at 80 bar inlet; >100 kg/hr at 500 bar
- Onboard HP storage: 40 kg @ 1,000 bar
- Dispenser: Bennett high-flow, H35/H70, 350 & 700 bar nozzles
- Outlet pressure: >900 bar
Requirements:
- Minimum inlet pressure: 30 bar
- Power: 200 kW
- Trailer: ~45 ft, self-contained for rapid setup
Why Choose FASTECH for Mobile Refueling?
FASTECH is the leading end-to-end provider of clean fueling solutions. We help transit agencies, fleet managers, and emerging hydrogen programs launch quickly and operate with confidence.
Launch Sooner
Launch your project’s fueling fast, and scale as demand grows. FASTMAX can operate independently, deploy in batches, or serve as a bridge solution while you plan a permanent facility.
Reduce Risk and Cost
Skip heavy construction and extensive civil work. FASTMAX supports pilot projects and long-term programs with the same rugged results.
Operate With Confidence
FASTECH worked out the hard parts during development so your operators can use FASTMAX with ease. Get a code-compliant fuel station backed by FASTECH engineers for seamless maintenance and maximum uptime.
Experience the Future of Fueling
Put FASTMAX to work and start fueling your growth with clean energy.
